编译debian后，烧录镜像不启动

Nick所

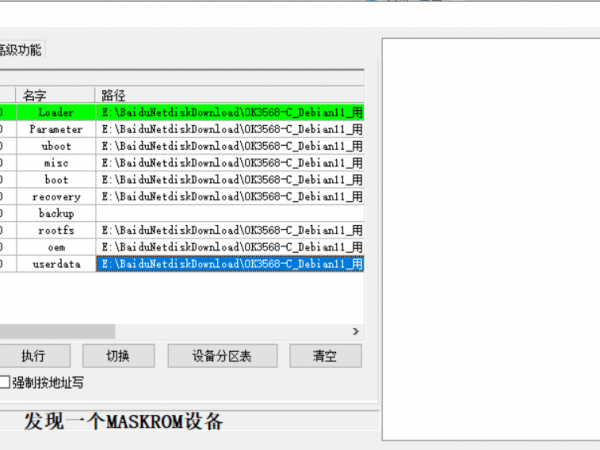

右键导入parameter.txt 导入烧录了这几个：



开机日志如下：
```DDR V1.18 f366f69a7d typ 23/07/17-15:48:58
In
LP4/4x derate en, other dram:2x trefi
ddrconfig:15
DDR4, 324MHz
BW=32 Col=10 Bk=4 BG=2 CS0 Row=16 CS=1 Die BW=16 Size=2048MB
tdqss: cs0 dqs0: 144ps, dqs1: 144ps, dqs2: 72ps, dqs3: 48ps,

change to: 324MHz
clk skew:0x8d

change to: 528MHz
clk skew:0x8d

change to: 780MHz
clk skew:0x8d

change to: 1560MHz(final freq)
clk skew:0x8d
PHY drv:clk:37,ca:37,DQ:37,odt:139
vrefinner:50%, vrefout:61%
dram drv:34,odt:120
cs 0:
the read training result:
DQS0:0x2c, DQS1:0x2c, DQS2:0x27, DQS3:0x31,
min  : 0xe 0x10  0xc  0xa  0x3  0x3  0x4  0x1 , 0xe 0x12  0x3  0xb  0xd 0x10  0xd  0xa ,
       0x5  0x3  0xa  0xa  0x5  0x3  0x5  0x3 , 0xc  0xc  0x7  0x0  0xc  0xc  0xb  0xc ,
mid  :0x26 0x27 0x25 0x21 0x1a 0x1a 0x1d 0x1a ,0x25 0x28 0x19 0x20 0x23 0x28 0x26 0x21 ,
      0x20 0x1f 0x24 0x24 0x20 0x1f 0x1d 0x1d ,0x27 0x25 0x21 0x1b 0x26 0x27 0x25 0x25 ,
max  :0x3f 0x3f 0x3f 0x39 0x32 0x32 0x36 0x33 ,0x3d 0x3e 0x2f 0x36 0x39 0x41 0x3f 0x39 ,
      0x3b 0x3b 0x3f 0x3f 0x3b 0x3b 0x36 0x38 ,0x42 0x3e 0x3c 0x37 0x40 0x42 0x3f 0x3f ,
range:0x31 0x2f 0x33 0x2f 0x2f 0x2f 0x32 0x32 ,0x2f 0x2c 0x2c 0x2b 0x2c 0x31 0x32 0x2f ,
      0x36 0x38 0x35 0x35 0x36 0x38 0x31 0x35 ,0x36 0x32 0x35 0x37 0x34 0x36 0x34 0x33 ,
the write training result:
DQS0:0xa9, DQS1:0xa9, DQS2:0x9b, DQS3:0x96,
min  :0x91 0x91 0x93 0x8f 0x87 0x87 0x87 0x84 0x8a ,0x90 0x91 0x88 0x90 0x8d 0x91 0x95 0x90 0x89 ,
      0x86 0x87 0x87 0x88 0x7e 0x85 0x83 0x83 0x82 ,0x7e 0x7b 0x7c 0x7a 0x7e 0x7e 0x7a 0x7e 0x7a ,
mid  :0xac 0xad 0xae 0xaa 0x9f 0xa1 0xa2 0x9e 0xa6 ,0xab 0xad 0xa2 0xab 0xa8 0xad 0xaf 0xac 0xa4 ,
      0xa1 0xa3 0xa2 0xa3 0x9b 0x9d 0x9b 0x9c 0x9d ,0x99 0x95 0x97 0x95 0x98 0x99 0x95 0x98 0x95 ,
max  :0xc8 0xc9 0xca 0xc5 0xb8 0xbb 0xbd 0xb9 0xc2 ,0xc6 0xc9 0xbc 0xc7 0xc3 0xca 0xc9 0xc8 0xbf ,
      0xbc 0xbf 0xbe 0xbe 0xb9 0xb5 0xb4 0xb6 0xb9 ,0xb4 0xaf 0xb3 0xb0 0xb2 0xb4 0xb0 0xb3 0xb1 ,
range:0x37 0x38 0x37 0x36 0x31 0x34 0x36 0x35 0x38 ,0x36 0x38 0x34 0x37 0x36 0x39 0x34 0x38 0x36 ,
      0x36 0x38 0x37 0x36 0x3b 0x30 0x31 0x33 0x37 ,0x36 0x34 0x37 0x36 0x34 0x36 0x36 0x35 0x37 ,
out
U-Boot SPL board init
U-Boot SPL 2017.09-g0187195ac9-230719 #zzt (Oct 24 2023 - 09:53:15)
I2c0 speed: 100000Hz
unknown raw ID 0 0 0
unrecognized JEDEC id bytes: 00, 00, 00
Trying to boot from MMC2
Card did not respond to voltage select!
mmc_init: -95, time 12
spl: mmc init failed with error: -95
Trying to boot from MMC1
SPL: A/B-slot: _a, successful: 0, tries-remain: 7
Trying fit image at 0x4000 sector
## Verified-boot: 0
## Checking atf-1 0x00040000 ... sha256(0d5225a4ab...) + OK
## Checking uboot 0x00a00000 ... sha256(1c4b17d10f...) + OK
## Checking fdt 0x00b4ba00 ... sha256(b955638368...) + OK
## Checking atf-2 0xfdcc1000 ... sha256(3e94d16e6a...) + OK
## Checking atf-3 0x0006b000 ... sha256(fde0ef262b...) + OK
## Checking atf-4 0xfdcce000 ... sha256(c9eb312bf2...) + OK
## Checking atf-5 0xfdcd0000 ... sha256(befba422b8...) + OK
## Checking atf-6 0x00069000 ... sha256(6ede7a3b44...) + OK
## Checking optee 0x08400000 ... sha256(4fcbcd3870...) + OK
Jumping to U-Boot(0x00a00000) via ARM Trusted Firmware(0x00040000)
Total: 214.892/449.313 ms

INFO:    Preloader serial: 2
NOTICE:  BL31: v2.3():v2.3-607-gbf602aff1:cl
NOTICE:  BL31: Built : 10:16:03, Jun  5 2023
INFO:    GICv3 without legacy support detected.
INFO:    ARM GICv3 driver initialized in EL3
INFO:    pmu v1 is valid 220114
INFO:    dfs DDR fsp_param[0].freq_mhz= 1560MHz
INFO:    dfs DDR fsp_param[1].freq_mhz= 324MHz
INFO:    dfs DDR fsp_param[2].freq_mhz= 528MHz
INFO:    dfs DDR fsp_param[3].freq_mhz= 780MHz
INFO:    Using opteed sec cpu_context!
INFO:    boot cpu mask: 0
INFO:    BL31: Initializing runtime services
INFO:    BL31: Initializing BL32
I/TC:
I/TC: OP-TEE version: 3.13.0-723-gdcfdd61d0 #hisping.lin (gcc version 10.2.1 20201103 (GNU Toolchain for the A-profile Architecture 10.2-2020.11 (arm-10.16))) #2 Wed Jun  7 09:43:57 CST 2023 aarch64
I/TC: Primary CPU initializing
I/TC: Primary CPU switching to normal world boot
INFO:    BL31: Preparing for EL3 exit to normal world
INFO:    Entry point address = 0xa00000
INFO:    SPSR = 0x3c9


U-Boot 2017.09-ga158292df7-230719 #zzt (Oct 25 2023 - 14:45:22 +0800)

Model: Forlinx OK3568-C
MPIDR: 0x81000000
PreSerial: 2, raw, 0xfe660000
DRAM:  2 GiB
Sysmem: init
Relocation Offset: 7d214000
Relocation fdt: 7b9f86e8 - 7b9fece8
CR: M/C/I
DM: v1
dwmmc@fe2b0000: 1, dwmmc@fe2c0000: 2, sdhci@fe310000: 0
Bootdev(atags): mmc 0
MMC0: HS200, 200Mhz
PartType: EFI
boot mode: recovery (misc)
## Resetting to default environment
Writing to <NULL>(<NULL>)... done
RESC: 'recovery', blk@0x000376bc
resource: sha256+
FIT: no signed, no conf required
DTB: rk-kernel.dtb
HASH(c): OK
io-domain: OK
INFO:    ddr dmc_fsp already initialized in loader.
rockchip_panel_probe: Cannot get backlight: -19
rockchip_panel_probe: Cannot get enable GPIO: -16
Could not find baseparameter partition
Model: Forlinx OK3568-C Board
MPIDR: 0x81000000
Rockchip UBOOT DRM driver version: v1.0.1
VOP have 3 active VP
vp0 have layer nr:2[1 5 ], primary plane: 5
vp1 have layer nr:3[0 2 4 ], primary plane: 4
vp2 have layer nr:1[3 ], primary plane: 3
ERROR: VP1: unsupported display timing
hdmi@fe0a0000 disconnected
Using display timing dts
lvds:  detailed mode clock 71000 kHz, flags[6]
    H: 1280 1420 1430 1440
    V: 0800 0802 0822 0823
bus_format: 1011
VOP update mode to: 1280x800p60, type: LVDS0 for VP2
VP2 set crtc_clock to 69882KHz
VOP VP2 enable Esmart1[400x300->400x300@440x250] fmt[1] addr[0x7df58000]
PLL is not lock
CLK: (sync kernel. arm: enter 816000 KHz, init 816000 KHz, kernel 0N/A)
  apll 1104000 KHz
  dpll 780000 KHz
  gpll 1188000 KHz
  cpll 1000000 KHz
  npll 1200000 KHz
  vpll 24000 KHz
  hpll 24000 KHz
  ppll 200000 KHz
  armclk 1104000 KHz
  aclk_bus 150000 KHz
  pclk_bus 100000 KHz
  aclk_top_high 500000 KHz
  aclk_top_low 400000 KHz
  hclk_top 150000 KHz
  pclk_top 100000 KHz
  aclk_perimid 300000 KHz
  hclk_perimid 150000 KHz
  pclk_pmu 100000 KHz
Rockchip watchdog timeout: 15 sec
find no I2C
a1007_host_cert failed  1
WARRNING: Please contact Forlinx2 !!
WARRNING: Please contact Forlinx2 !!
WARRNING: Please contact Forlinx2 !!
WARRNING: Please contact Forlinx2 !!

```
